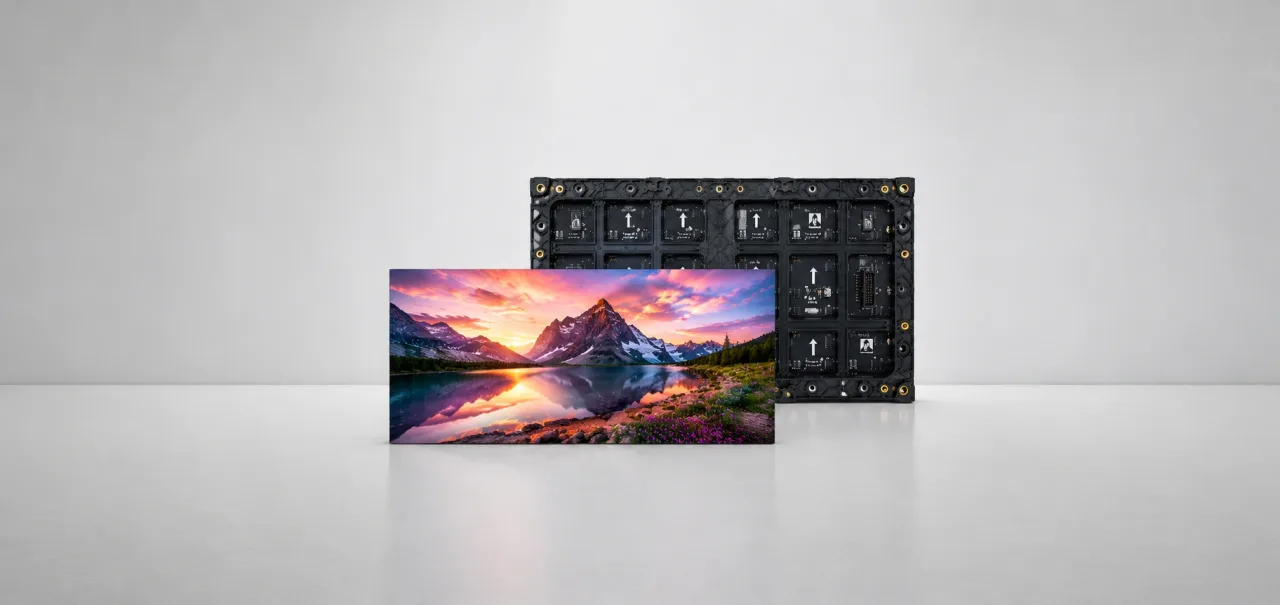

P4 Indoor LED Display
Pixel pitch: 4.0mm
Price: ৳3,500 - ৳5,500 (per sq.ft)
Complete installed LED display rate per sq. ft., including LED display equipment, mounting structure, installation, transportation, VAT and a 1-year LED display warranty. Final equipment configuration, screen dimensions and project total are confirmed in an itemized BOQ.
Recommended: Retail signage, Showroom LED wall, Office reception, Training room
Key Features:
- Balanced indoor clarity for medium viewing distance
- 320x160mm standard module size for cabinet planning
- Stable PCB and LED packaging for daily operation
- Clean text, offer, and branding playback
- Good fit for shop, office, and education displays
- Controller-ready workflow for indoor content management
Cost-effective indoor LED module with clear text visibility, practical 320x160mm cabinet compatibility, and stable everyday performance for commercial display projects.
| Parameter | Value |
|---|---|
| Pixel Pitch | 4.0mm |
| LED Type | SMD2121 |
| Module Resolution (WxH) | 80x40 = 3,200 pixels |
| Pixel Density | 62,500 dots/m2 |
| Module Size (WxHxD) | 320mm x 160mm x 16mm |
| Module Weight | 0.33 +- 0.02kg |
| HUB Type | HUB75 |
| Single-dot Brightness Calibration | Support |
| Brightness | >=500 cd/m2 |
| Color Temperature | 2000K - 9300K adjustable |
| Viewing Angle (H/V) | 140deg / 140deg |
| Brightness/Color Uniformity | >=97% |
| Contrast Ratio | 5000:1 |
| Input Power <Max> | 430 W/m2 |
| Input Power <Typical> | 145 W/m2 |
| Power Supply Input Voltage | AC90-132V / AC186-264V, 47-63Hz |
| Frame Changing Frequency | 60Hz |
| Refresh Rate | 3840Hz (standard) |
| Processing Depth | 12-14bit |
| Video Support | Full HD, 2K, 4K scaling support |
| Life Span | 100,000 hours |
| Working Temp/Humidity | -20 deg C to 45 deg C / 10%-50% RH (no condensation) |
| Storage Temp/Humidity | -20 deg C to 50 deg C / 10%-60% RH (no condensation) |
| Certification | CE / ROHS / CB |
P4 Indoor LED Display is designed for indoor communication where close-view clarity, stable color output, and reliable daily operation are important. Final selection should align with viewing distance, screen size, and content workflow.
Build quality focuses on 320x160mm indoor module structure helps simplify cabinet planning and replacement work, Stable PCB layout and standard indoor build support consistent day-to-day screen performance, Well-suited for commercial display projects where budget control and reliable operation both matter. Control workflow includes HUB75-based control workflow supports practical receiving-card and controller integration, Single-dot brightness calibration support helps improve color and brightness consistency across the display, Supports indoor content playback for product promotion, presentation screens, schedules, and branded communication. Installation notes cover Best performance comes from proper viewing-distance planning, cabinet alignment, and clean power distribution, Works well for retail walls, reception branding, indoor promo displays, and training-room visual communication, Project-based sizing, structure planning, and calibration help achieve a cleaner final image on site. Support includes 3840Hz refresh helps produce smoother visuals for presentation, ads, and general commercial playback, Spare module planning, controller setup, and content guidance improve long-term maintenance readiness, Suitable for Bangladesh indoor LED projects that need practical pricing and dependable after-sales support.
