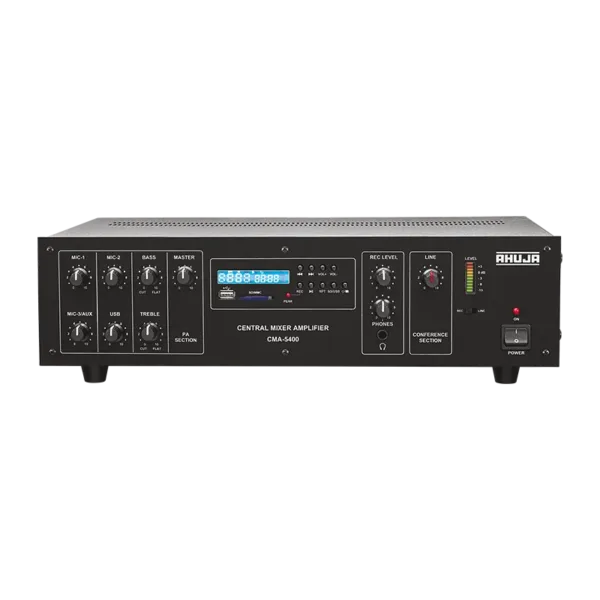

Ahuja CMA-5400 50W Central Mixer Amplifier
Price: 0 BDT
Recommended: Boardroom, Seminar Hall, Office, Council Chamber
Key Features
- 50W central mixer amplifier for conference and PA systems
- Supports chairman and delegate units for organized meetings
- Mic and AUX input support for flexible audio connection
- Line output, send output and return input for system integration
- 100V / 70V speaker output for commercial PA installation
- 4 ohm, 8 ohm and 16 ohm speaker support for flexible speaker setup
- Bass and treble tone control for sound adjustment
- Chairman priority function for meeting control
- Built-in protection system for safer operation
- Ideal for boardrooms, seminar halls, offices and conference rooms
Ahuja 50W central mixer amplifier for conference and PA systems with chairman/delegate unit support.
Detailed Overview
The Ahuja CMA-5400 is a 50W central mixer amplifier for conference and PA systems. It supports chairman and delegate units, microphone/AUX inputs, multiple speaker outputs and conference room audio control.
Related pages
What you get from us
- - BOQ-based quotation and model recommendation
- - Cabling / zoning planning and selection guidance
- - Rack wiring, testing, and commissioning support
- - After-sales support and service-friendly setup
| Parameter | Value |
|---|---|
| Brand | Ahuja |
| Model | CMA-5400 |
| Series | CM-5000 |
| Product Type | Central Mixer Amplifier |
| Rated Power Output | 50W RMS at 2% THD |
| Power Output | 50W Max at 2% THD / 90W Max |
| Inputs | 3 x Mic, 1 x AUX |
| Mic Input | 0.65mV / 4.7k ohm |
| AUX Input | 100mV / 470k ohm |
| Frequency Response | 60Hz - 14,000Hz +/-3dB |
| S/N Ratio | >60dB |
| Tone Control | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Preamp Output | 200mV / 600 ohm |
| Line Output | 1V / 1k ohm |
| Send Output | 200mV / 600 ohm |
| Return Input | 200mV / 10k ohm |
| Speaker Output | 4 ohm, 8 ohm, 16 ohm, 70V and 100V |
| Power Requirement | AC 220-240V, 50/60Hz / DC 24V Battery |
| Power Consumption | 250VA |
| Protection | AC Fuse 1 x 3Amp, DC Fuse 2 x 10Amp |
| Dimensions | W483 x H110 x D325mm |
| Weight | 10.50kg |
| Application | Conference System, PA System, Meeting Audio |
| Suitable For | Boardroom, Office, Seminar Hall, Council Chamber |
Featured Products
Related items you may also need for your setup.
Ahuja 50W digital conference amplifier with touch display, USB recording, RJ45 connectivity and group support.

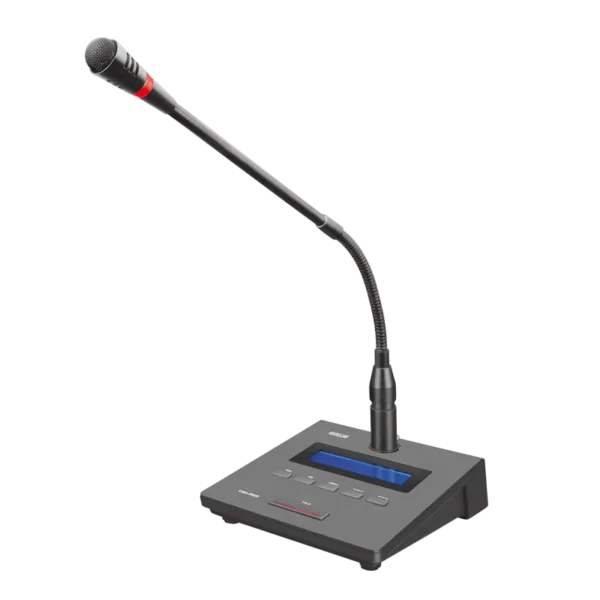

Ahuja delegate unit microphone with LCD display, voting buttons, RJ45 connection and condenser pickup.
Higher-power 100V line mixer amplifier for mid-size building paging and BGM.
FAQ
Quick answers before ordering a PA sound system item in Bangladesh.
Yes. It is designed for conference and PA systems with chairman/delegate unit support, mic inputs and speaker outputs for meeting audio.
