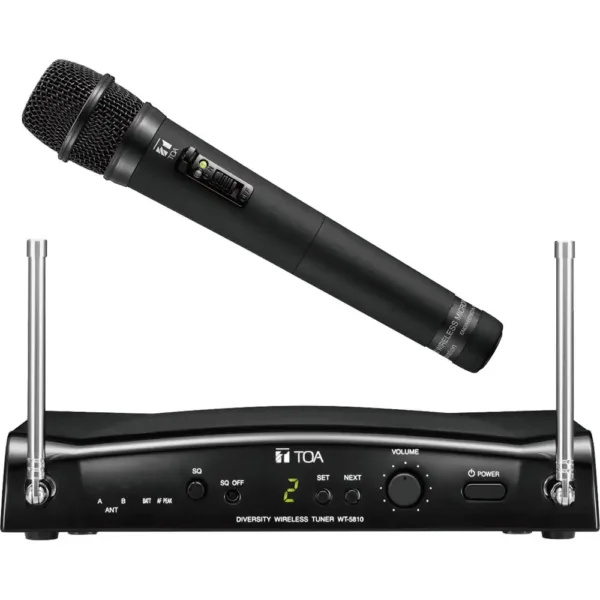

TOA WT-5810 WM-5225 UHF Wireless Microphone
Price: 41,000 BDT
Recommended: School, Mosque, Office, Conference
Key Features
- UHF wireless microphone system for speech and vocal use
- Includes WT-5810 receiver and WM-5225 handheld microphone
- PLL synthesized system for stable frequency operation
- 100 selectable channels for flexible setup
- Double super-heterodyne receiving system for reliable performance
- Space diversity antenna system for improved signal reception
- Clear voice pickup for announcements and presentations
- Balanced and unbalanced output support for PA integration
- Ideal for schools, mosques, offices, halls and conference rooms
TOA UHF wireless microphone system with WT-5810 receiver, WM-5225 handheld mic and 100 selectable channels.
Detailed Overview
The TOA WT-5810 + WM-5225 is a UHF wireless microphone package for clear speech, presentation and vocal pickup. It combines a WT-5810 receiver with a WM-5225 handheld microphone for stable PA system use.
Related pages
What you get from us
- - BOQ-based quotation and model recommendation
- - Cabling / zoning planning and selection guidance
- - Rack wiring, testing, and commissioning support
- - After-sales support and service-friendly setup
| Parameter | Value |
|---|---|
| Brand | TOA |
| Model | WT-5810 + WM-5225 |
| Product Type | UHF Wireless Microphone System |
| Receiver Model | WT-5810 |
| Microphone Model | WM-5225 |
| Wireless Type | UHF |
| Power Source | AC Mains with AC Adapter |
| Power Consumption | 130mA / 12V DC |
| Receiving Frequency | 576 - 865MHz UHF |
| Channel Selectable | 100 Channels |
| Receiving System | Double Super-Heterodyne |
| Diversity System | Space Diversity |
| Antenna | Whip Antenna |
| Receiving Sensitivity | 90dB or more |
| Squelch Sensitivity | 16 - 40dB Variable |
| Tone Frequency | 32.768kHz |
| Indicator | Ant A/B, Audio Peak, Battery Alarm, Channel Number |
| Mixing Output | MIC / LINE Balanced, XLR-3-32 Type Connector |
| Mixing Input | -30dB, 10k ohm, Unbalanced Phone Jack |
| Signal to Noise Ratio | 104dB or More |
| Harmonic Distortion | 1% or Less |
| Frequency Response | 100Hz - 15kHz |
| Operating Temperature | -10C to +50C |
| Operating Humidity | 30% to 85% RH |
| Finish | Black |
| Dimensions | 206 x 40 x 172mm |
| Weight | Approx. 0.7kg |
| Accessory | AC Adapter |
Featured Products
Related items you may also need for your setup.
Dual-channel UHF handheld set for halls, programs and events with stable RF setup.

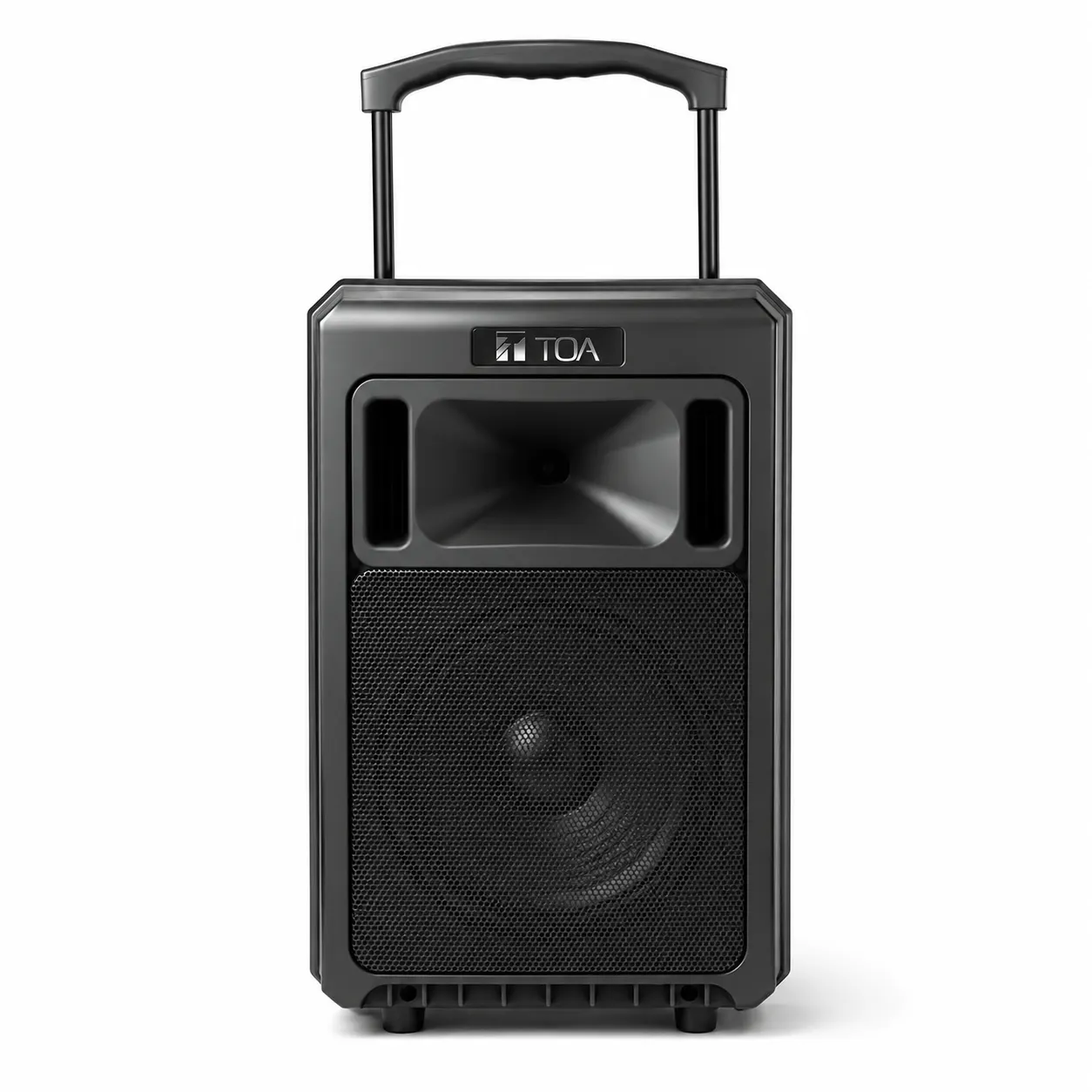

Portable TOA speaker amplifier with rechargeable battery, USB/SD playback, Bluetooth and mic input support.
Hands-free mic set for teachers and presenters with bodypack transmitter.
FAQ
Quick answers before ordering a PA sound system item in Bangladesh.
It is suitable for schools, mosques, offices, halls, conference rooms and PA systems where stable UHF wireless speech pickup is needed.
