Quantum Tripod Turnstile DS-Q50S for Secure Access

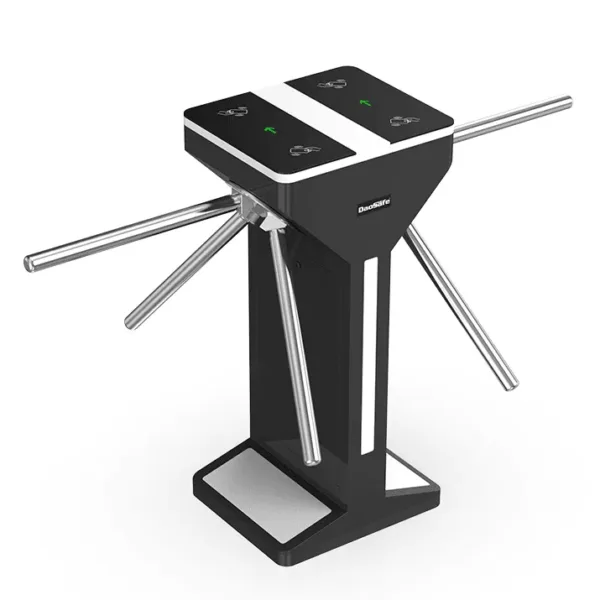

Daosafe DS112 Tripod Turnstile Gate
Type: Tripod turnstile
Manufacturer reference: Daosafe DS112
Indicative equipment price: ৳320,000 - ৳460,000
Indicative Equipment Price · Configuration to Be Confirmed
Confirm the exact manufacturer, model and equipment configuration before ordering. Request the current product datasheet and an itemized BOQ covering the selected gate, access devices and installation scope.
Recommended: Staff entry planning, Campus entrances, Factory entry planning
Key Features
- 550mm manufacturer-listed passage
- 35 people/minute manufacturer rating
- Authentication requires compatible access equipment
- Access event logging requires compatible controllers and software; building compliance must be assessed separately
Stainless steel tripod turnstile for staff entrance, attendance control, and controlled pedestrian flow.
Detailed Overview
Stainless steel tripod turnstile for staff entrance, attendance control, and controlled pedestrian flow. Tripod turnstiles control pedestrian movement using rotating arms. Review the exact operating direction, passage arrangement and emergency arm behaviour for the selected equipment.
Related pages
What you get from us
- - Lane planning and model recommendation
- - Wiring, controller integration and setup guidance
- - Software configuration and basic handover support
- - After-sales support and service-friendly commissioning
These are manufacturer-published model references, not confirmation of the equipment included in the displayed price. Confirm the supplied version, passage arrangement, electrical requirements, readers, controllers and software in the project BOQ. Published throughput is a manufacturer rating; actual pedestrian flow depends on authentication and operating conditions. Emergency release does not by itself establish building accessibility or evacuation compliance.
| Parameter | Value |
|---|---|
| Manufacturer Reference | Daosafe |
| Model Reference | DS112 |
| Quoted Configuration | Operating direction, readers, controller and equipment inclusions must be confirmed |
| Gate Mechanism | Tripod turnstile |
| Clear Passage Width | 550mm; manufacturer lists 500mm arm length |
| Cabinet Dimensions | 1200 × 185 × 980mm |
| Manufacturer-Rated Throughput | 35 people/minute |
| Cabinet Material | 304 stainless steel |
| Supply | AC 110V / 220V, 50/60Hz — confirm the ordered supply version |
| Operating Voltage | 24V DC |
| Power Consumption | 40W |
| Operating Temperature | −20°C to 75°C |
| Operating Environment | Manufacturer lists indoor/outdoor use; confirm the supplied protection and site exposure |
| Power-Failure Operation | Manufacturer states automatic arm opening on power loss |
| Operating Direction | Single-direction or bidirectional configuration |
| Gate Control Interfaces | Dry contact, relay signal, RS485 |
Source: Daosafe DS112 — manufacturer product parameters. Reference checked: 2026-10-20. Undated manufacturer product page; supplied revision must be confirmed.
Featured Products
Related items you may also compare for your setup.
Featured Products
View all productsDS-Q50S Tripod Turnstile Gate
Flap Barrier Turnstile Gate DS318 with Stainless Steel Body
Need a complete turnstile gate solution?
Share your entry point type, expected traffic, and access control requirement. We will suggest a relevant turnstile gate setup with controller, reader, installation, and project planning.
FAQ
Quick answers before ordering a turnstile gate system item in Bangladesh.
Confirm the supplied version against the linked manufacturer reference. The BOQ should identify passage and cabinet quantities, compatible readers, controllers, software, electrical requirements and installation services. Verify documented emergency operation and suitable alternative passage for the building.
