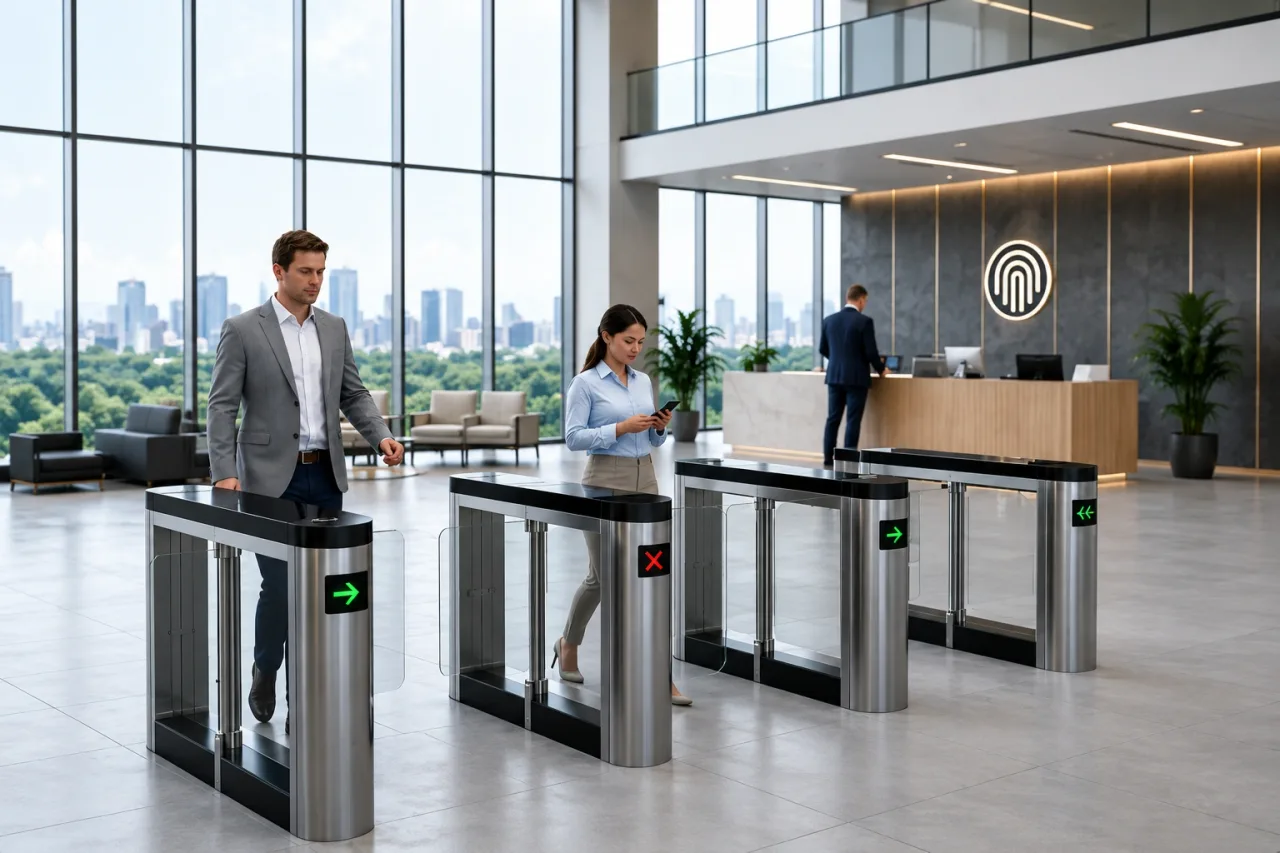

Flap Barrier Turnstile Gate DS318 with Stainless Steel Body
DS312 Flap Turnstile Gate
Type: Optical flap turnstile
Manufacturer reference: Daosafe DS312
Indicative equipment price: ৳480,000 - ৳780,000
Indicative Equipment Price · Configuration to Be Confirmed
Confirm the exact manufacturer, model and equipment configuration before ordering. Request the current product datasheet and an itemized BOQ covering the selected gate, access devices and installation scope.
Recommended: Commercial entrance planning, Office lobbies, Institutional entrances
Key Features
- 600mm manufacturer-listed passage
- 45 people/minute manufacturer rating
- Reader and controller compatibility must be confirmed
- Access event logging requires compatible controllers and software; building compliance must be assessed separately
Compact flap turnstile solution for office, bank, and lobby access control with RFID or biometric integration.
Detailed Overview
Compact flap turnstile solution for office, bank, and lobby access control with RFID or biometric integration. Flap barriers use retracting panels for managed pedestrian passage. Check the selected model's clear opening, documented sensors and supported gate control interfaces.
Related pages
What you get from us
- - Lane planning and model recommendation
- - Wiring, controller integration and setup guidance
- - Software configuration and basic handover support
- - After-sales support and service-friendly commissioning
These are manufacturer-published model references, not confirmation of the equipment included in the displayed price. Confirm the supplied version, passage arrangement, electrical requirements, readers, controllers and software in the project BOQ. Published throughput is a manufacturer rating; actual pedestrian flow depends on authentication and operating conditions. Emergency release does not by itself establish building accessibility or evacuation compliance.
| Parameter | Value |
|---|---|
| Manufacturer Reference | Daosafe |
| Model Reference | DS312 |
| Quoted Configuration | Cabinet quantity, access devices and software inclusions must be confirmed in the BOQ |
| Gate Mechanism | Optical flap turnstile |
| Clear Passage Width | 600mm |
| Cabinet Dimensions | 1200 × 185 × 1000mm |
| Manufacturer-Rated Throughput | 45 people/minute |
| Cabinet / Barrier Material | 304 stainless steel cabinet; transparent Plexiglas barriers |
| Supply | AC 110V / 220V, 50/60Hz — confirm the ordered supply version |
| Operating Voltage | 24V DC |
| Power Consumption | 40W |
| Operating Temperature | −15°C to 60°C |
| Operating Environment | Manufacturer lists indoor/outdoor use; confirm the supplied protection and site exposure |
| Passage Sensors | 5 infrared sensor pairs: 4 upper, 1 lower |
| Power-Failure Operation | Manufacturer states automatic barrier opening on power loss |
| Operating Direction | Single-direction or bidirectional configuration |
| Gate Control Interfaces | Dry contact, relay signal, RS485 |
Source: Daosafe DS312 — manufacturer product parameters. Reference checked: 2026-10-20. Undated manufacturer product page; supplied revision must be confirmed.
