P6.67 Outdoor LED Display Module
Pixel pitch: P6.67 (6.67mm)
Price: ৳7,130 - ৳7,674 (per sq.ft)

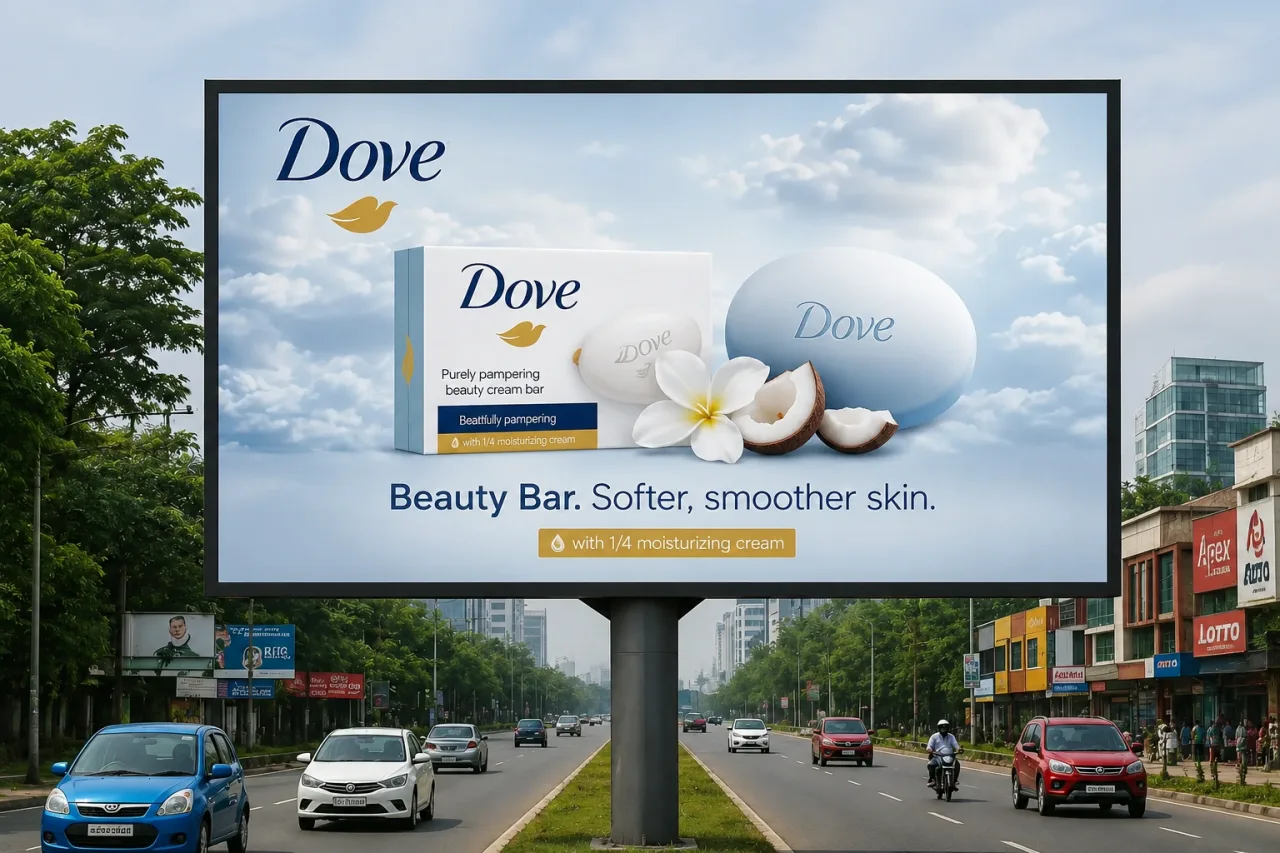

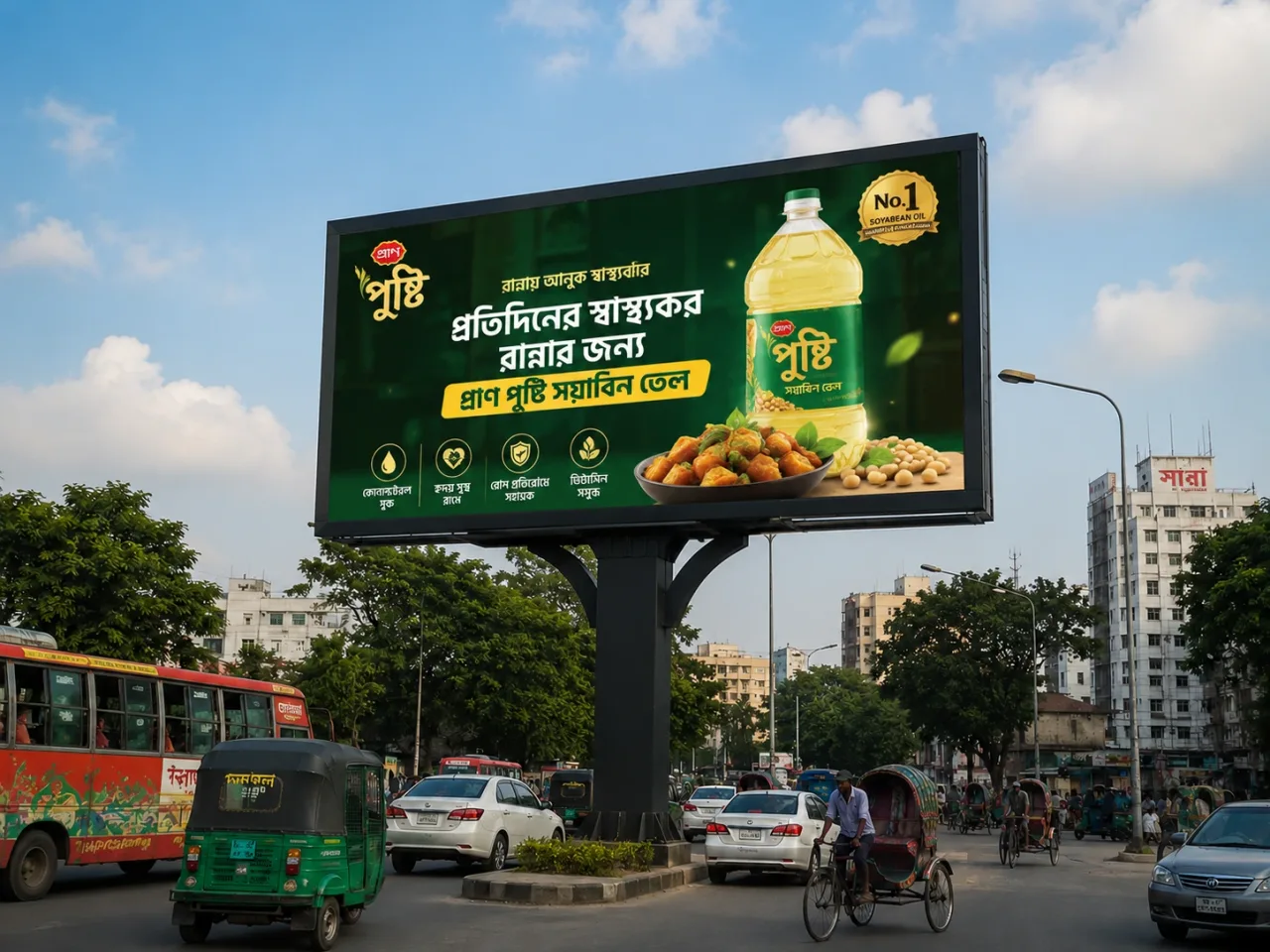

Recommended: Large billboards, Roadside advertising, Public display boards, Commercial outdoor signage
Key Features:
- Standard Size: 320x160mm universal outdoor LED module.
- Lightweight Design: Supports easier installation and reduced structural load with proper cabinet planning.
- High-Quality Lamp Beads: Durable SMD1921 LEDs for stable long-hour operation.
- Enhanced Reliability: Optimized power and signal workflow supports Common 320x160mm module size, Good for far viewing, Cost-efficient for large areas, Outdoor waterproof planning, Easy spare sourcing (standard size).
- Excellent Visual Experience: 5000 : 1 and >= 95% for clear viewing performance.
- Good Compatibility: Suitable for Large billboards, Roadside advertising, Public display boards, Commercial outdoor signage.
- Installation Friendly: Supports practical mapping, calibration, and long-term maintenance workflow.
- High Refresh Rate: Supports up to 3840 Hz (Standard) / 7680 Hz (Optional) for camera-friendly performance.
Standard 320x160mm module size for large outdoor displays - ideal for billboards and far viewing installations.
Detailed Overview
P6.67 Outdoor LED Display Module is suitable for outdoor visibility where weather conditions, installation safety, and content readability from distance are critical. Final planning should confirm height, viewing angle, and stable power routing.
What you get from us
- - BOQ-based quotation and model recommendation
- - Controller configuration and calibration guidance
- - Power planning and installation support
- - After-sales support and spare planning
| Parameter | Value |
|---|---|
| Pixel Pitch | P6.67 (6.67mm) |
| LED Type | SMD1921 |
| Module Resolution (WxH) | 48x24 = 1,152 pixels |
| Pixel Density | 22,478 dots/m2 |
| Module Size (WxH) | 320x160mm |
| Module Weight | Project dependent |
| HUB Type | HUB75 |
| Brightness | 5500 cd/m2 |
| Color Temperature | 3200 K - 9300 K adjustable |
| Viewing Angle (H/V) | 140 deg / 140 deg |
| Brightness / Color Uniformity | >= 95% |
| Contrast Ratio | 5000 : 1 |
| Max Power Consumption | 700 W/m2 |
| Typical Power Consumption | 260 W/m2 |
| Input Voltage | AC 90-132 V / AC 186-264 V (47-63 Hz) |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz (Standard) / 7680 Hz (Optional) |
| Processing Depth | 14 - 16 Bit |
| Video Support | 2K / 4K UHD |
| Life Span | 100,000 Hours |
| Operating Temp / Humidity | -20 deg C to +50 deg C / 10% - 90% RH |
| Storage Temp / Humidity | -20 deg C to +50 deg C / 10% - 80% RH |
| Certifications | BIS / CE / CB / RoHS / EAC |
| Environment | Outdoor |
| Use Case | Large billboards, Roadside advertising, Public display boards, Commercial outdoor signage |
