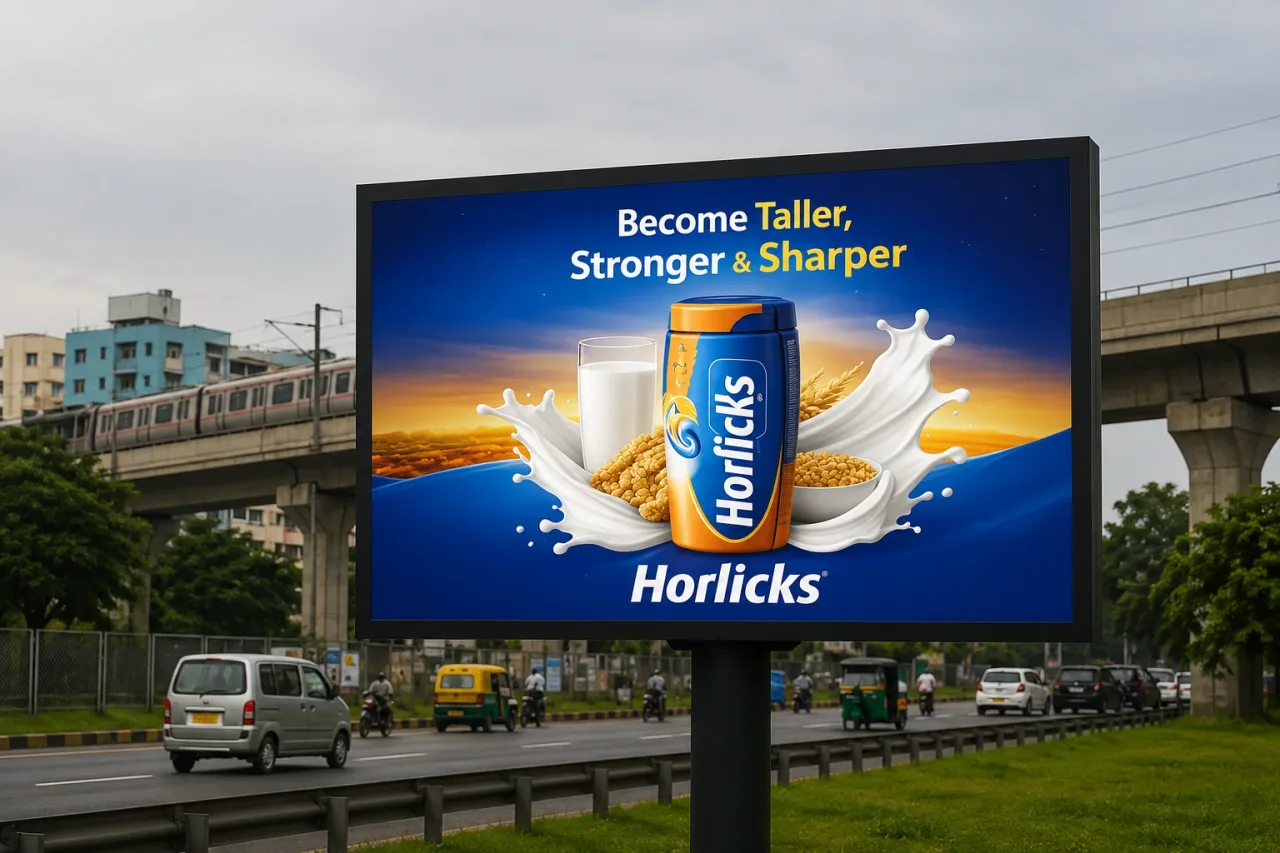

OutdoorP6.67 Outdoor LED Display Module
Pixel pitch: P6.67 (6.67mm)
Tk 4,600 - 7,600 (per sq.ft, project offer)

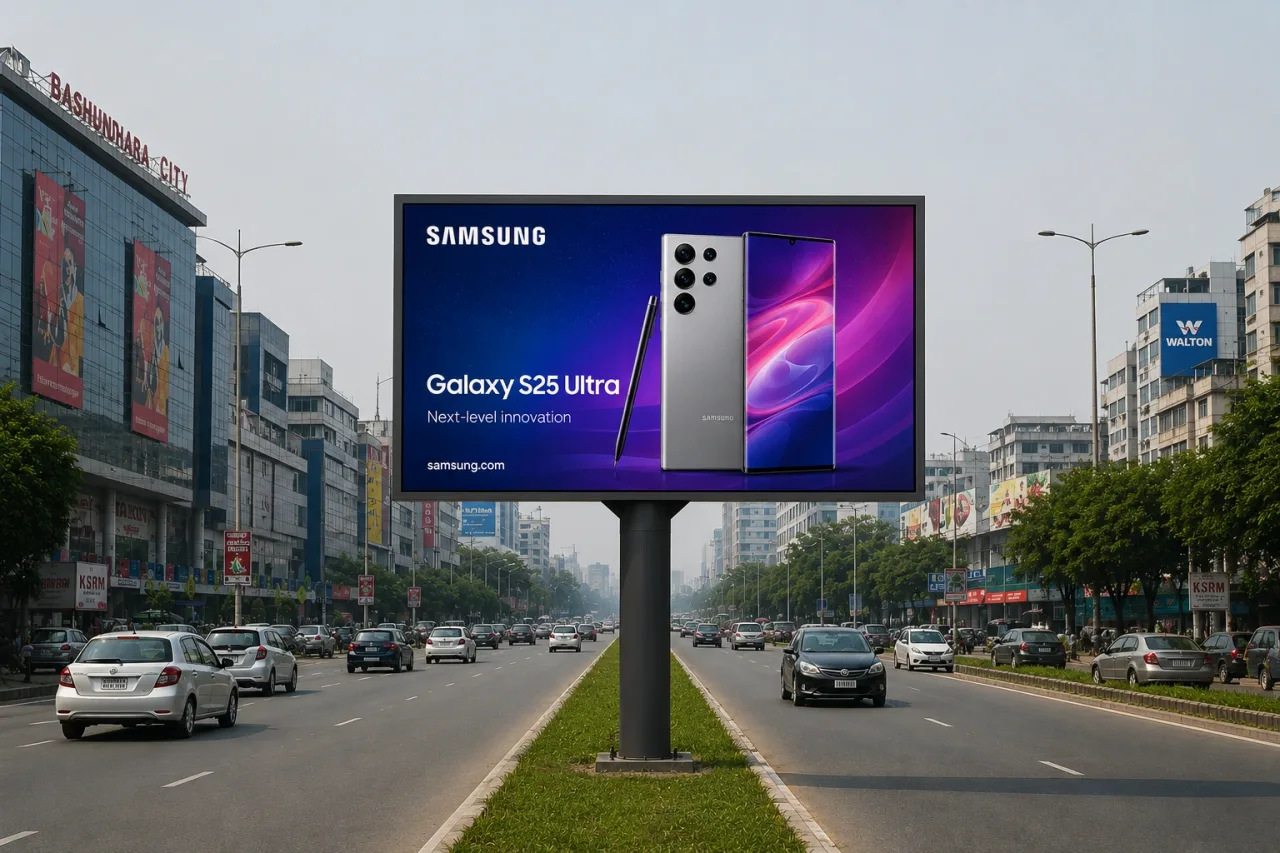

P3 Outdoor LED Display Module
Pixel pitch: P3 (3mm)
Price: Tk 13,500 - 17,380 (per sq.ft, project offer)
Recommended: Outdoor billboards, Roadside advertising, Large shop signage, Commercial building facade
Key Features:
- Standard Size: 320×160 mm universal outdoor LED module.
- Lightweight Design: Supports easier installation and reduced structural load with proper cabinet planning.
- High-Quality Lamp Beads: Durable SMD1921 LEDs for stable long-hour operation.
- Enhanced Reliability: Optimized power and signal workflow supports Balanced clarity vs budget, Good for medium viewing distance, Weather-resistant cabinet setup, High brightness daylight planning, Stable performance with good PSU.
- Excellent Visual Experience: 5000 : 1 and ≥ 95% for clear viewing performance.
- Good Compatibility: Suitable for Signage & advertising.
- Installation Friendly: Supports practical mapping, calibration, and long-term maintenance workflow.
- High Refresh Rate: Supports up to 3840 Hz (Standard) / 7680 Hz (Optional) for camera-friendly performance.
Balanced clarity and costâ€â€popular for outdoor billboards, roadside advertising and large shop signage.
Detailed Overview
P3 Outdoor LED Display Module is suitable for outdoor visibility where weather conditions, installation safety, and content readability from distance are critical. Final planning should confirm height, viewing angle, and stable power routing.
What you get from us
- - BOQ-based quotation and model recommendation
- - Controller configuration and calibration guidance
- - Power planning and installation support
- - After-sales support and spare planning
| Parameter | Value |
|---|---|
| Pixel Pitch | P3 (3mm) |
| LED Type | SMD1921 |
| Module Resolution (W×H) | 107×53 = 5,671 pixels |
| Pixel Density | 111,111 dots/m² |
| Module Size (W×H) | 320×160 mm |
| Module Weight | Project dependent |
| HUB Type | HUB75 |
| Brightness | 5500 cd/m² |
| Color Temperature | 3200 K - 9300 K adjustable |
| Viewing Angle (H/V) | 140° / 140° |
| Brightness / Color Uniformity | ≥ 95% |
| Contrast Ratio | 5000 : 1 |
| Max Power Consumption | 700 W/m² |
| Typical Power Consumption | 260 W/m² |
| Input Voltage | AC 90-132 V / AC 186-264 V (47-63 Hz) |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz (Standard) / 7680 Hz (Optional) |
| Processing Depth | 14 - 16 Bit |
| Video Support | 2K / 4K UHD |
| Life Span | 100,000 Hours |
| Operating Temp / Humidity | -20°C to +50°C / 10% - 90% RH |
| Storage Temp / Humidity | -20°C to +50°C / 10% - 80% RH |
| Certifications | BIS / CE / CB / RoHS / EAC |
| Environment | Outdoor |
| Use Case | Signage & advertising |
Featured Products
Related products you may also like.
Outdoor

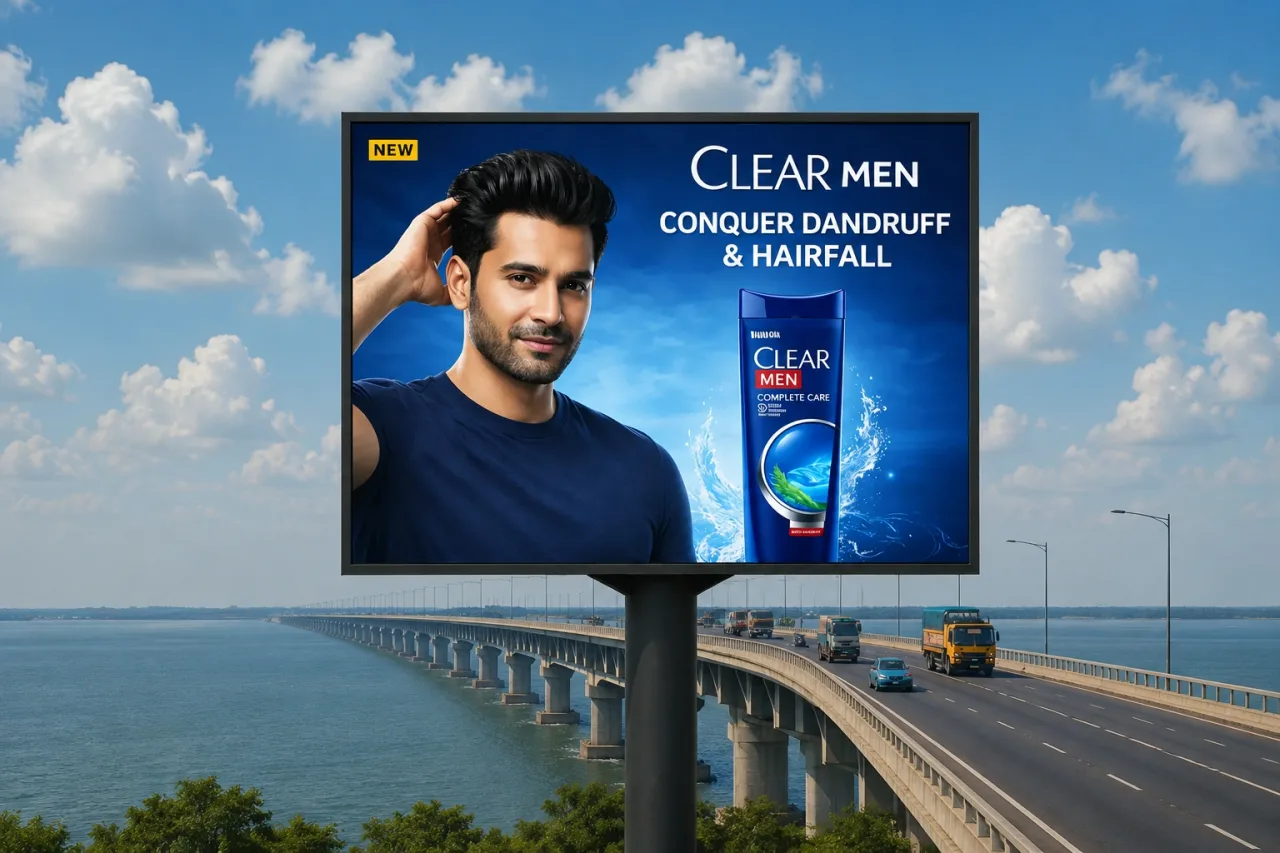

OutdoorP3.076 Outdoor LED Display Module
Pixel pitch: P3.076 (3.076mm)
Tk 9,110 - 9,554 (per sq.ft, project offer)

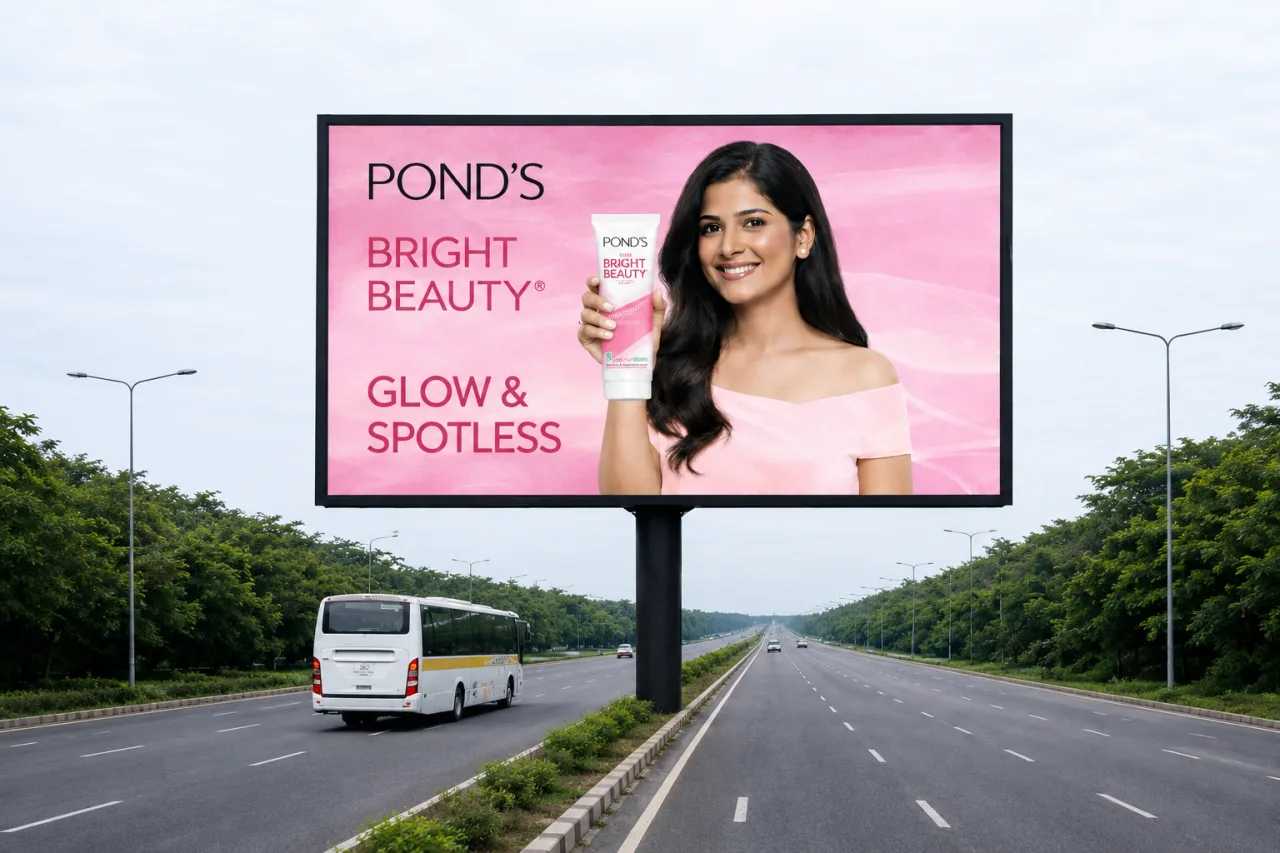

OutdoorP2.5 Outdoor LED Display Module
