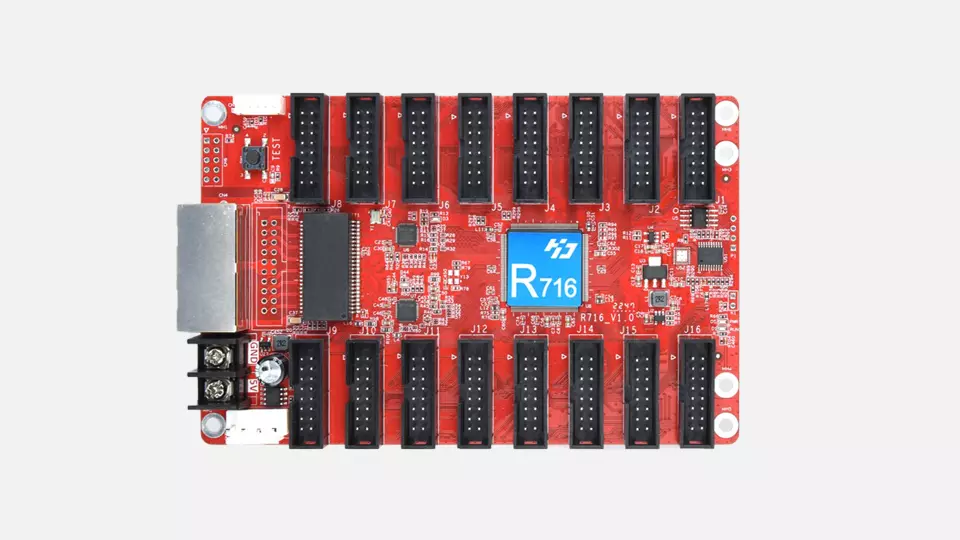

Huidu HD-R716 Receiving Card
16 HUB75E - High Pixel

Huidu HD-R716 Receiving Card

High-end receiving card for ultra-fine pixel pitch LED displays with 16 HUB75E ports, smart diagnostics, and dual Gigabit Ethernet for stable data transmission.

Get a Quotation →WhatsApp NowBack to Receiving Cards
Key Features

Practical features that reduce mapping issues and improve long-term stability.

  • 16 HUB75E ports (supports large module arrays without extra HUB cards)
  • Pixel capacity up to 512 × 640 (327,680 pixels total)
  • Scan versatility: static to 1/128 scan
  • Wide grayscale range: 256 to 65,536 levels
  • Smart setup tools: built-in diagnostics + auto-configuration
  • LED indicators for power & signal status
  • Dual Gigabit Ethernet ports (daisy-chain + backup link supported)
  • Industrial operating range (-40°C to +80°C; 0–90% RH)

Detailed Overview

Huidu HD-R716 Receiving Card is a core part of LED module data processing. Proper compatibility with module scan type, HUB interface, and controller ecosystem is essential for stable output and predictable commissioning.

  • 16 HUB75E ports (supports large module arrays without extra HUB cards)
  • Pixel capacity up to 512 × 640 (327,680 pixels total)
  • Scan versatility: static to 1/128 scan
  • Wide grayscale range: 256 to 65,536 levels
  • Smart setup tools: built-in diagnostics + auto-configuration
  • LED indicators for power & signal status
  • Dual Gigabit Ethernet ports (daisy-chain + backup link supported)
  • Industrial operating range (-40°C to +80°C; 0–90% RH)
WhatsApp quotationRequest proposal →Back to receiving card listing
Model
HD-R716
Interface Ports
16 × HUB75E, 2 × Gigabit Ethernet
Pixel Capacity
Up to 512 × 640 (327,680 pixels)
Scanning Support
Static to 1/128 scan
Grayscale Support
256–65,536 levels
Voltage Input
DC 4.0V ~ 5.5V
Power Consumption
Max 5W
Operating Temperature
-40°C to +80°C
Humidity Tolerance
0 ~ 90% RH
Weight
~ 91g
Compatibility
All standard & PWM driver IC modules
Smart Features
Smart config, diagnostics, auto-scan detection

Compatibility Checklist

Matching these points before ordering reduces wrong-selection risk.

  • Compatible with standard & PWM driver IC modules (according to controller ecosystem)
  • Confirm scan mode (static to 1/128) matches your module and controller configuration
  • Use correct port mapping and cabinet-to-cabinet routing plan during commissioning

Installation & Commissioning

Following best practices reduces downtime and makes maintenance easier.

  • Check LED indicators to confirm power and signal status during initial setup
  • Document port mapping/routing for easier future service
  • Use quality CAT5e/CAT6 and proper grounding to reduce noise and flicker risk

Common Issues & Quick Fix

During setup, most issues come from mapping, scan settings, or cable routing.

  • Shift/mirror/tearing -> mapping/scan mismatch; re-check configuration and routing
  • Random flicker -> grounding/noise or unstable power; verify distribution and cable quality
  • No output -> check Ethernet link, port mapping, and ribbon orientation
WhatsApp for SupportContact for Setup Help →

Featured Receiving Cards

Explore other popular receiving card models.

R-712 Receiving Card
HUB75E - 12 Ports
Accessories
R-712 Receiving Card

High-performance receiving card for synchronous & asynchronous LED control systems. Built-in HUB75E ports for faster installation.

Dual compatibility (Sync + Async control systems)Built-in HUB75E ports (no external adapter boards)High load capacity (up to 131,072 pixels)Scan mode support (static to 1/128 scan)
Request quotationView details →
R-732 Receiving Card
Advanced Pixel Control
Accessories
R-732 Receiving Card

Advanced receiving card for fine-pitch & large LED video walls. Reliable transmission with flexible pixel mapping and cascade support.

Advanced pixel control (Conventional + PWM IC support)Direct connection to modules (flexible cascade)Stable communication over distance (system dependent)Offset & data exchange support (layout flexibility)
Request quotationView details →
Huidu HD-R516 Receiving Card
16 HUB75E - Smart Setup
Accessories

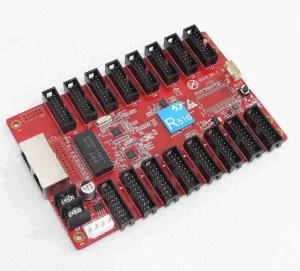

Huidu HD-R516 Receiving Card

Smart receiving card for full-color LED video screens with 16 HUB75E ports and dual Gigabit Ethernet for stable transmission. Supports smart settings and built-in screen test.

16 HUB75E ports for cabinet module connectivityDual Gigabit Ethernet ports (daisy-chain supported)Smart setting support for faster screen layout setupBuilt-in screen test function (uniformity + flatness check)
Request quotationView details →

FAQs

Common questions about receiving card selection:

1What is HD-R716 best suited for?
+

Ultra-fine pixel pitch and high-resolution LED display installations where stable data transmission and flexible scan support are required.

2Does it support high scan modes?
+

Yes. It supports scan modes from static up to 1/128 scan.

3What should I share for correct selection/setup?
+

Share your module pixel pitch, scan rate, HUB type, cabinet resolution, and controller/sending device model for accurate mapping and configuration.
