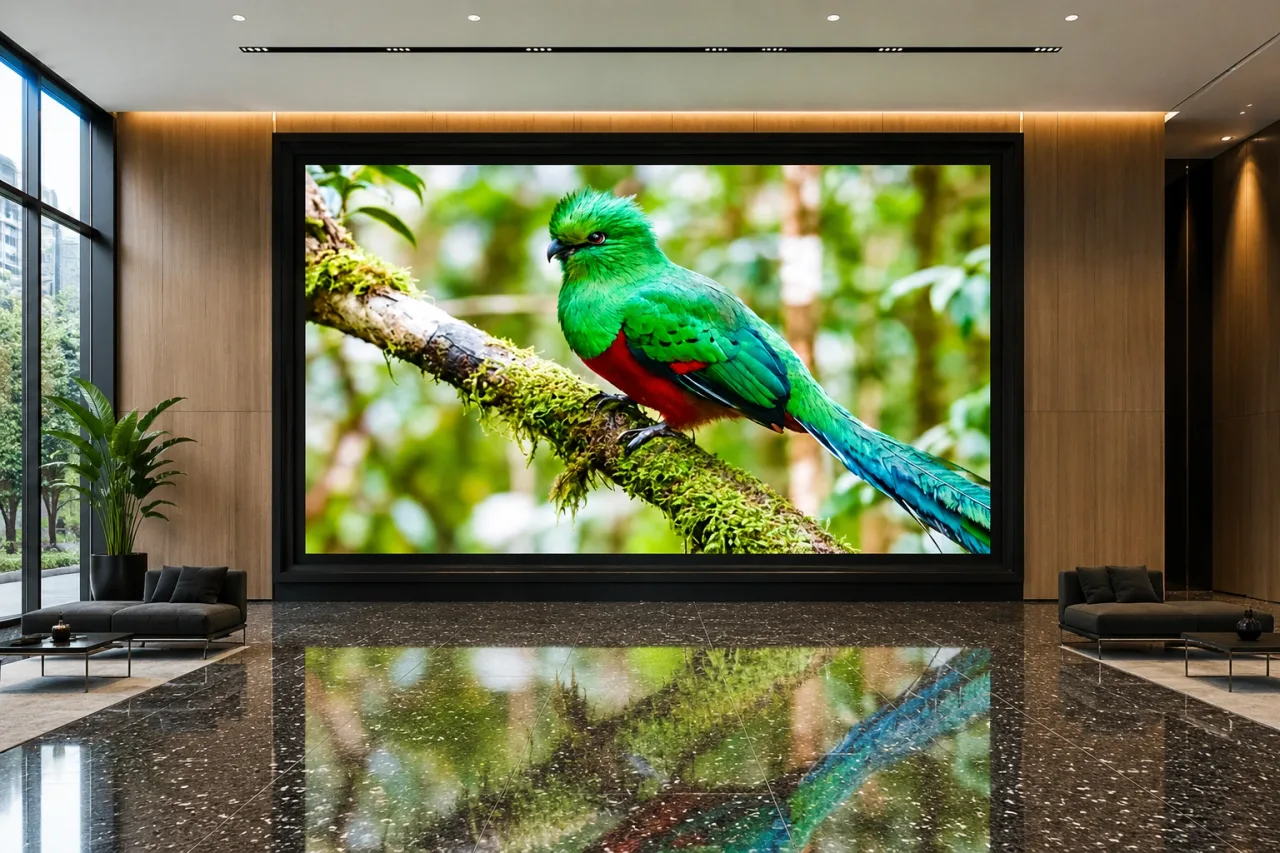

P1.667 Indoor LED Display Module
Pixel pitch: P1.667 (1.667mm)
Price: ৳12,300 - ৳15,200 (per sq.ft)
Recommended: Boardroom, Showroom, Control room, TV studio
Key Features:
- Standard Size: 320x160mm universal indoor LED module.
- Lightweight Design: Supports easier installation and reduced structural load with proper cabinet planning.
- High-Quality Lamp Beads: Durable SMD1212 LEDs for stable long-hour operation.
- Enhanced Reliability: Optimized power and signal workflow supports Premium clarity, Strong grayscale, Camera-friendly refresh option, Balanced fine pitch.
- Excellent Visual Experience: 5000 : 1 and >= 95% for clear viewing performance.
- Good Compatibility: Suitable for Premium indoor wall.
- Installation Friendly: Supports practical mapping, calibration, and long-term maintenance workflow.
- High Refresh Rate: Supports up to 3840 Hz (Standard) / 7680 Hz (Optional) for camera-friendly performance.
Premium indoor clarity with strong grayscale & camera-friendly refresh options.
Detailed Overview
P1.667 Indoor LED Display Module is designed for indoor communication where close-view clarity, stable color output, and reliable daily operation are important. Final selection should align with viewing distance, screen size, and content workflow.
What you get from us
- - BOQ-based quotation and model recommendation
- - Controller configuration and calibration guidance
- - Power planning and installation support
- - After-sales support and spare planning
| Parameter | Value |
|---|---|
| Pixel Pitch | P1.667 (1.667mm) |
| LED Type | SMD1212 |
| Module Resolution (WxH) | 192x96 = 18,432 pixels |
| Pixel Density | 359,856 dots/m2 |
| Module Size (WxH) | 320x160mm |
| Module Weight | Project dependent |
| HUB Type | HUB75 |
| Brightness | 500 cd/m2 |
| Color Temperature | 3200 K - 9300 K adjustable |
| Viewing Angle (H/V) | 140 deg / 140 deg |
| Brightness / Color Uniformity | >= 95% |
| Contrast Ratio | 5000 : 1 |
| Max Power Consumption | 480 W/m2 |
| Typical Power Consumption | 160 W/m2 |
| Input Voltage | AC 90-132 V / AC 186-264 V (47-63 Hz) |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz (Standard) / 7680 Hz (Optional) |
| Processing Depth | 14 - 16 Bit |
| Video Support | 2K / 4K UHD |
| Life Span | 100,000 Hours |
| Operating Temp / Humidity | -20 deg C to +45 deg C / 10% - 90% RH |
| Storage Temp / Humidity | -20 deg C to +50 deg C / 10% - 80% RH |
| Certifications | BIS / CE / CB / RoHS / EAC |
| Environment | Indoor |
| Use Case | Premium indoor wall |
Featured Products
Related products you may also like.
Need a complete indoor solution?
Share your screen size, installation type, and site details. We will help you plan a relevant indoor setup with modules, controller, power, structure, and support.
