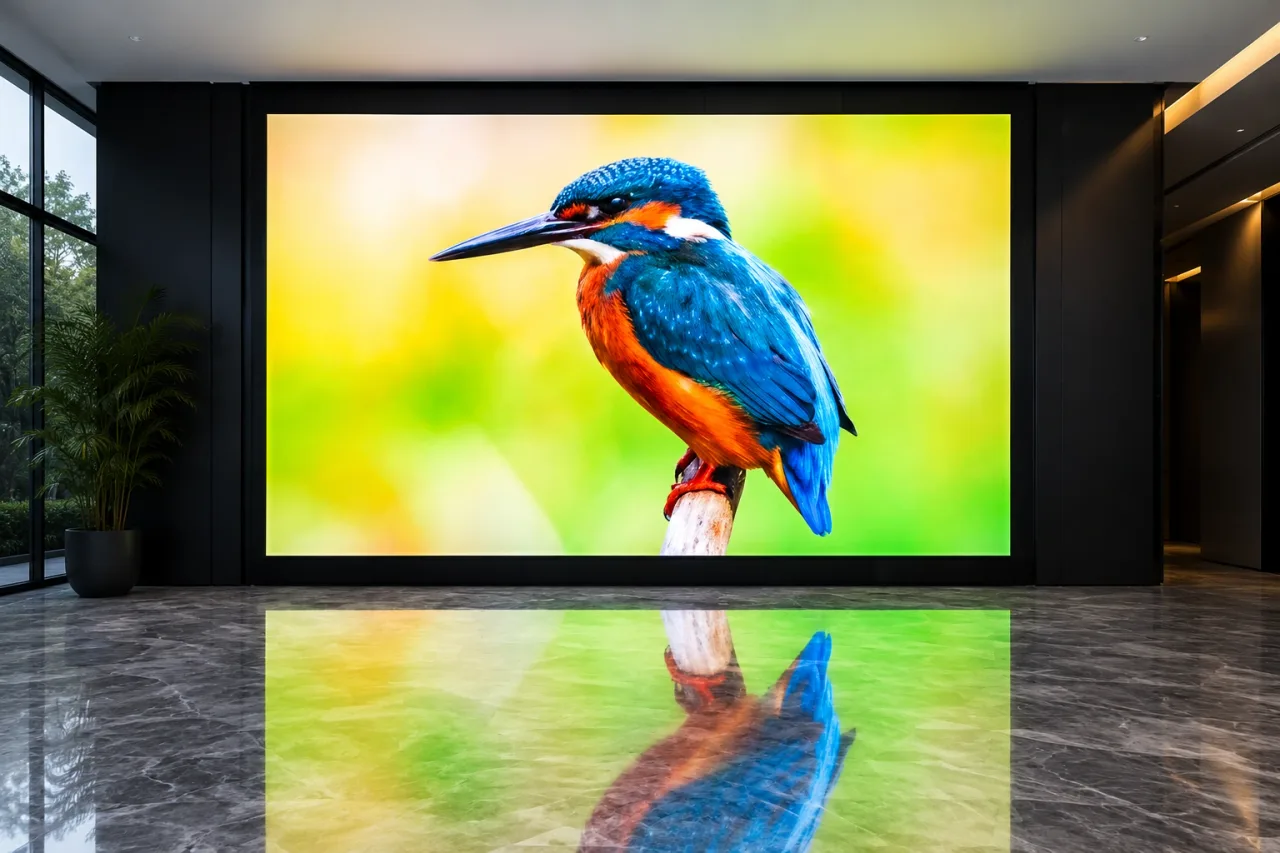

P1.25 Indoor LED Display Module
Pixel pitch: P1.25 (1.25mm)
Recommended: Control room, Studio, Boardroom, Premium indoor video wall
Key Features
- Standard Size: 320×160mm universal indoor LED module.
- Lightweight Design: Supports easier installation and reduced structural load with proper cabinet planning.
- High-Quality Lamp Beads: Durable SMD1212 LEDs for stable long-hour operation.
- Enhanced Reliability: Optimized power and signal workflow supports Ultra-fine pitch, Close viewing clarity, High refresh option, Premium indoor video wall.
- Excellent Visual Experience: 5000 : 1 and ≥ 95% for clear viewing performance.
- Good Compatibility: Suitable for Fine pitch video wall.
- Installation Friendly: Supports practical mapping, calibration, and long-term maintenance workflow.
- High Refresh Rate: Supports up to 3840 Hz (Standard) / 7680 Hz (Optional) for camera-friendly performance.
Ultra-fine pitch for premium control rooms & close-view video walls.
Detailed Overview
P1.25 Indoor LED Display Module is designed for indoor communication where close-view clarity, stable color output, and reliable daily operation are important. Final selection should align with viewing distance, screen size, and content workflow.
What you get from us
- - BOQ-based quotation and model recommendation
- - Controller configuration and calibration guidance
- - Power planning and installation support
- - After-sales support and spare planning
| Parameter | Value |
|---|---|
| Pixel Pitch | P1.25 (1.25mm) |
| LED Type | SMD1212 |
| Module Resolution (W×H) | 256×128 = 32,768 pixels |
| Pixel Density | 640,000 dots/m² |
| Module Size (W×H) | 320×160mm |
| Module Weight | Project dependent |
| HUB Type | HUB75 |
| Brightness | 500 cd/m² |
| Color Temperature | 3200 K - 9300 K adjustable |
| Viewing Angle (H/V) | 140° / 140° |
| Brightness / Color Uniformity | ≥ 95% |
| Contrast Ratio | 5000 : 1 |
| Max Power Consumption | 480 W/m² |
| Typical Power Consumption | 160 W/m² |
| Input Voltage | AC 90-132 V / AC 186-264 V (47-63 Hz) |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz (Standard) / 7680 Hz (Optional) |
| Processing Depth | 14 - 16 Bit |
| Video Support | 2K / 4K UHD |
| Life Span | 100,000 Hours |
| Operating Temp / Humidity | -20°C to +45°C / 10% - 90% RH |
| Storage Temp / Humidity | -20°C to +50°C / 10% - 80% RH |
| Certifications | BIS / CE / CB / RoHS / EAC |
| Environment | Indoor |
| Use Case | Fine pitch video wall |
